AMPLIFIER

Payment

T/T
MOQ

Negotiable
Country of sale

World Wide
Catalogue
PRICE
- FOB

  Depend on quantity

Description
Shipping&Payments
Company Introduction
POC SUGGESTIONS
(PROOF OF CONCEPT)
Product Reviews

ITEM SPECIFICS

Brand

Unbranded

Model SJP-3000PLUS/3000RTC
origin

Republic of Korea
Size(Capacity)

PRODUCT DESCRIPTION

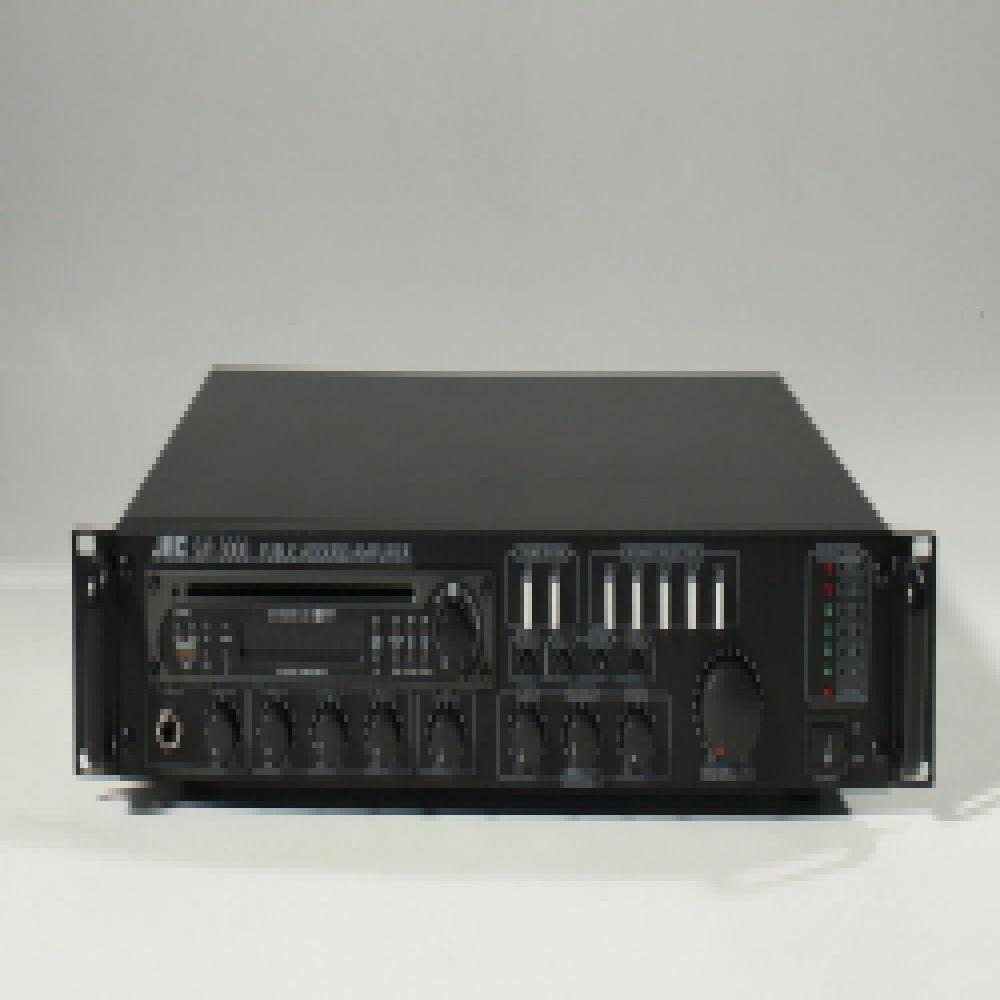

Model : SJP - 1500PLUS/3000 PLUS
P.A amplifier SJP - 1500PLUS/3000 PLUS

Excellent Sound Quality! Strong Power!
Our PA-Amplifier has an excellent reproduction capacity of music close to SR.
Its low-noise design enables the clear reproduction of the original sound.
Its automatic shutoff function protects the amplifier in case of high temperature or overload.
Its system design makes it multi-functional.
It is a high-end amplifier system that you can use for multiple purposes such as training center, public organization, community center, microphone broadcasting, music broadcasting, gymnasium, aerobics hall, factory sound system, apartment broadcasting system and disaster emergency broadcasting system etc.

Product Features
- 4 microphones(XRL and 5.5 plug can be used)
- Phantom 24V supported for condenser microphone
- 3 external Inputs (Aux)
- Main Input/Pre out/Rec. out function
- 4 Speaker selectors, ALL x 1
- Speaker line (70V-100V) and 4Ω, 8Ω, 16Ω
- Echo delay
- Chime, emergency siren
- 3 band tone control volume
- Level meter displays the output condition
- DC 24V connector against blackout
- Built-in bracket for the installation of rack cabinet
- Built-in type of circuit breaker against high temperature
and overload

Specification

Type		P. A. Amplifier
Model		SJP-1500 PLUS	SJP-3000 PLUS
Power Output		Rated : 120W	Rated : 240W
Input Channel		Mic : 4 ch, Line : 4 ch.
Out selector		Ch. 1, 2, 3, 4, All
Other function		Chime / Siren / Echo / Delay / Pre-out / Aux input / tone control / over heat protect.
Output		Speaker output	Speaker output
		4Ω(22V)	4Ω(31V)
		8Ω(31V)	8Ω(44V)
		16Ω(44V)	16Ω(62V)
		83Ω(100V)	42Ω(100V)
Frequency Response (±3dB), 8Ω/1W		80 ~ 18,000Hz
Total harmonic distortion		Less than 0.5% at 1KHz, rated power
S/N Ratio (DIN Audio)	line	More than 70dB
Input Sensitivity XLR,1/4”Jack	Mic	-52dBm/600Ω(balanced)
	Line	-10dBm/15KΩ(Unbalanced)
	Ext Amp In	-0dBm/15KΩUnbalanced)
Preout Sensitivity		-0dBm/10KΩ(Unbalanced)
Dimensions(W x H x D)		420 x 90 x 350(mm)
Weight		12KG	15KG
AC Power		AC220V/60Hz, DC24V
Power Consumption		300watts	600watts
