DRIVER UNIT

Payment

T/T
MOQ

Negotiable
Country of sale

World Wide
PRICE
- FOB

  Depend on quantity

Description
Shipping&Payments
Company Introduction
POC SUGGESTIONS
(PROOF OF CONCEPT)
Product Reviews

ITEM SPECIFICS

Brand

Unbranded

Model SJD-50FT
origin

Republic of Korea
Size(Capacity)

PRODUCT DESCRIPTION

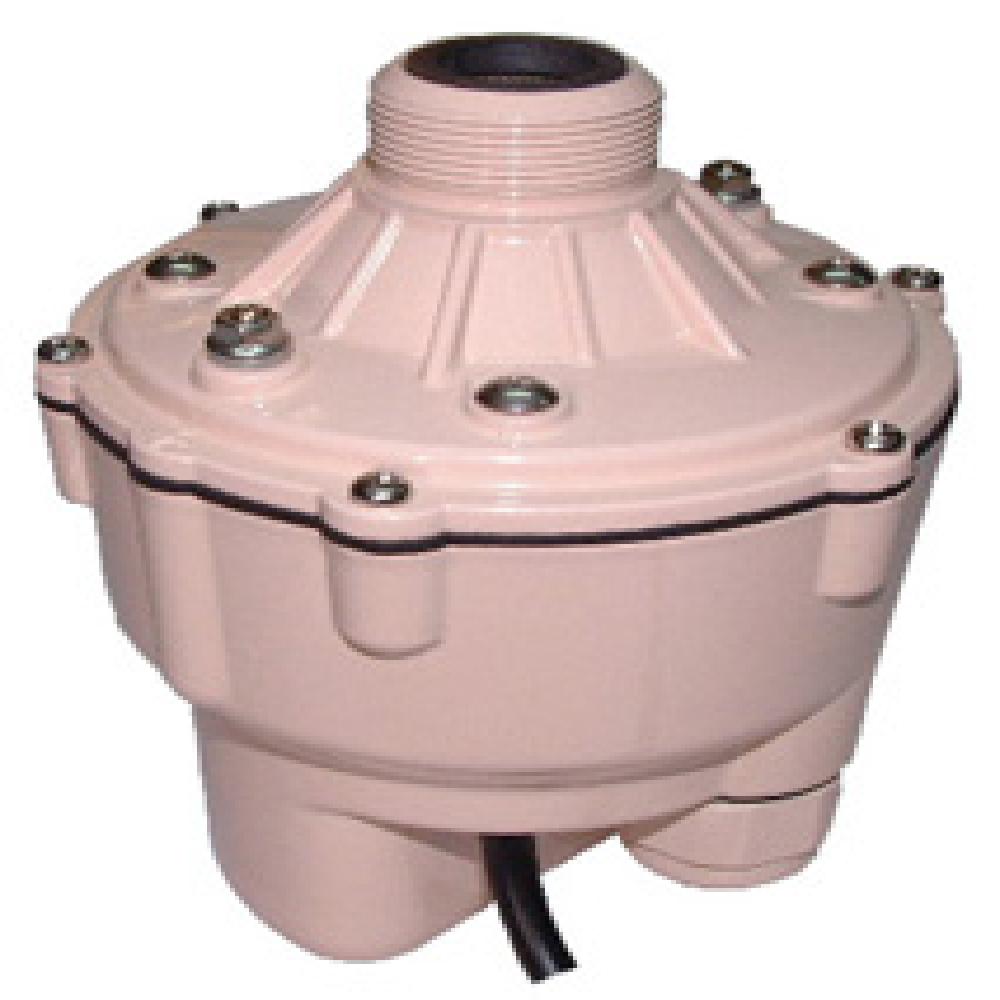

Driver unit

With transformer

SJD-50FT with transformer
Driver unit SJD-50FT with transformer

- Be applied in public adderess announcement applications.
- The driver unit in die-casting aluminum.
- The driver units are apply to SJH-75RH, SJH-TH40 or other drivers.
- High power and high efficiency and provides highly articulate sound.
- Power control: by move PIN.

Features
- The thermostable and abrasion-resistant diaphragm by specially coating
voice coil.

Specification

Input(Rated)	50W/40W/30W/20W
Voice Coil	49.5mm
Frequency Range	150Hz - 5KHz
Net Weight	2.6kg
S.P.L(1W/1m)	113dB
Dimensions	110∅x135mm
Impedance	200Ω, 250Ω330Ω500Ω
Materials	Ferrite

SJD-100FT with transformer
Driver unit SJD-100FT with transformer

- The driver unit in die-casting aluminum.
- The driver units are apply to SJH-75RH, SJH-TH40 or other drivers.
- High power and high efficiency and provides highly articulate sound in any harshest
environment.

Features
- The thermostable and abrasion-resistant diaphragm by specially coating voice
coil and applied it to driver unit.

Specification

Input(Rated)	100W
Voice Coil	66.04∅
Frequency Range	150Hz - 5KHz
Net Weight	4.05kg
S.P.L(1W/1m)	113dB
Dimensions	118∅x178mm
Impedance	100Ω
Materials	Alnico
